Характеристики

Производственная мощность: 800~2000

Власть: 1,5 кВт

Масса: 1500 кг

Скорость сварки: 1250-2000 шт/мин, 800-1800 шт/мин

Электронная система управления: ПЛК (XINJE XC3-42R-E)

Размер экрана касания: 10,1 дюйма

инвертор VF: СИНДЖЕ VB5-21P5, 220 В, 1,5 кВт

Применимое питание: 380 В переменного тока, 50 Гц, 3-фазный

Электрическое питание для сварки: 490-530 В постоянного тока

сварка тока: 1000–2000 А (вторичная сторона)

Номинальная мощность: 8 кВт

Максимальная мощность: 20 кВт

Сжатый воздух: ≥ 0,4-0,8 МПа

Охлаждающее давление воды: 0.1-0.2Mpa

Размеры: 2650 х 900 х 2000 мм

Выделить:

Fully Automatic Coil Nail Collator

1.5KW Power Coil Nail Making Machine

PLC Control Nail Collator Machine

Основная информация

Место происхождения: Цзянсу, Китай

Фирменное наименование: DURA

Оплата и доставка Условия

Галерея

Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production

Характер продукции

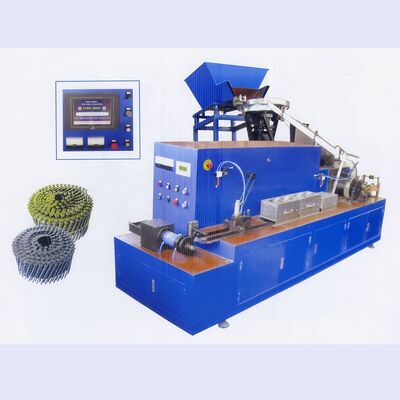

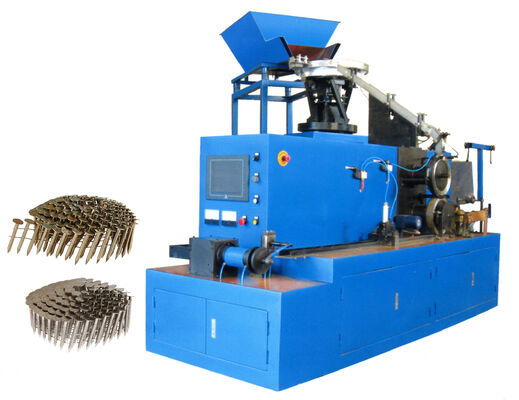

Coil Nail Collator Machine

Advanced automatic welding equipment for efficient coil nail production, featuring our latest 3rd generation technology with continuous improvements based on user feedback and technical expertise.

Operation Process

Disordered wire nails or roofing nails are fed into the vibrating feeder, where they align along the spiral passage and travel through a downward groove to the welding wheels. Two copper-plated wires are welded to the nails at a precise 15°-16° angle. The welded nails are then coiled to a fixed length and cut, forming either flat-top or cone-top coil shapes.

An optional rust-proof acrylic resin/lacquer dipping and drying unit can be integrated between welding and coiling processes. Finally, each coil is manually bound with a rubber band.

Technical Specifications - Model CNC-N3

Model	CNC-N3	Applicable Nail Types	Common wire nails with smooth, annular, twisted shank
Applicable Nail Sizes	Ø1.8-2.5mm/25-75mm Ø2.7-4.0mm/75-100mm	Capacity	1250-2000 pcs/min 800-1800 pcs/min
Electronic Control System	PLC: XINJE XC3-42R-E	Touch Screen	XINJE, 10.1"
Coil Specifications	Angle: 15°-16° Nails per coil: 200-400 Welding wires: Copper coated steel wire	VF Inverter	XINJE VB5-21P5, 220V, 1.5KW
Applicable Power Supply	AC 380V, 50Hz, 3-phase (others available upon request)	MCU	AT89C52 (ATMEL, USA)
Welding Power Supply	DC 490-530V	Compressed Air	≥ 0.4-0.8Mpa
Welding Current	1000-2000A (secondary side)	Cooling Water	Pressure: 0.1-0.2Mpa
Rated Power	8KW	Net Weight	Approx. 1500kgs
Max Power	20KW	Dimensions	2650 x 900 x 2000mm

Technical Specifications - Model CNC-N4

Model	CNC-N4	Applicable Nail Types	Common wire nails with smooth, annular, twisted (spiral thread) shank
Applicable Nail Sizes	Ø1.8-2.5mm/25-75mm Ø2.7-4.0mm/75-100mm	Capacity	1250-2000 pcs/min 800-1800 pcs/min
Electronic Control System	PLC: XINJE XC3-42R-E	Touch Screen	XINJE, 10.1"
Coil Specifications	Angle: 15°-16° Nails per coil: 200-400 Welding wires: Copper coated steel wire	VF Inverter	XINJE VB5-21P5, 220V, 1.5KW
Applicable Power Supply	AC 380V, 50Hz, 3-phase (others available upon request)	HF Spot-Welding Controller	GY-2000
Welding Current	Max. 100-1000A (secondary side)	Compressed Air	≥ 0.4-0.8Mpa
Rated Power	20KVA	Cooling Water	Pressure: 0.1-0.2Mpa
Max Power	40KVA	Net Weight	Approx. 1500kgs
Main Motor	0.75KW	Dimensions	3000 x 900 x 2000mm

Technical Notes

(1) Many Chinese users prefer 15.5° angle to accommodate finished coil nails to air guns with 15° or 16°, otherwise an extra S.S. Nail Holding Wheel must be ordered separately.

(2) Recommended welding wire specifications for common coil nails: Copper coated welding wires with diameter 0.6-0.8mm, tolerance +0.01/-0.02mm, tensile strength 300-365 Mpa, elongation ≥ 12%. Stainless steel coil nails require stainless steel welding wires.

Customer Support Services

Pre-Sales Services

Inquiry and consulting support
Sample testing support
Factory viewing opportunities

After-Sales Services

Machine installation training
Machine operation training
Overseas engineer service support

Company Profile

Founded in April 2011, WUXI TRIPOD MACHINERY was established to meet diverse customer demands with optimized service. With extensive export experience and technical expertise, we have successfully supplied products to Southeast Asia, the Middle East, Africa, East Europe and South America. Today we handle both export business with annual turnover exceeding $3 million and import operations.

Our Mission

We strive to be the eyes of purchasers, brain aide of decision-making and hand of inspection on finished products.

Our Philosophy

Effort forms the foundation of ongoing business, while credit creates the essence of trade expansion.
